Traffic Forms Scan

Traffic Forms Scan

This is a step-by-step guide to using the traffic forms scan option in CATS.\

Quick Guide Steps

1. Go to Traffic > Forms Scan.
2. Here you will have a list of all open traffic forms. The blank ones are templates only.\
3. Choose your menu option: **Edit, Order, Search, **or Tools.
4. Choose Edit to go to the traffic form. Then choose Edit on the form to modify.
5. Order will change the appearance of the form.
6. Search will take you to a particular order on the scan.
7. Choose Tools to switch between orders and marks (marks on orders).
8. You can also search and order the marks from this page.
9. Press Exit to return to the main menu.

Scanning Traffic Forms

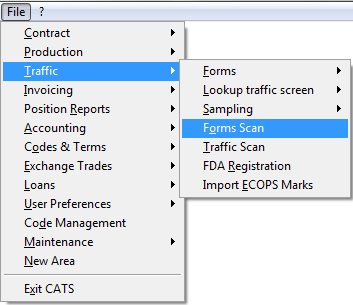

Traffic forms are Delivery Orders (DO), Sampling Orders (SO) and all other forms related to traffic movements. To see a list of all open traffic forms, go to Traffic > Forms Scan.

Traffic form scan

Here you will have a list of all traffic forms. The blank ones are templates only.\

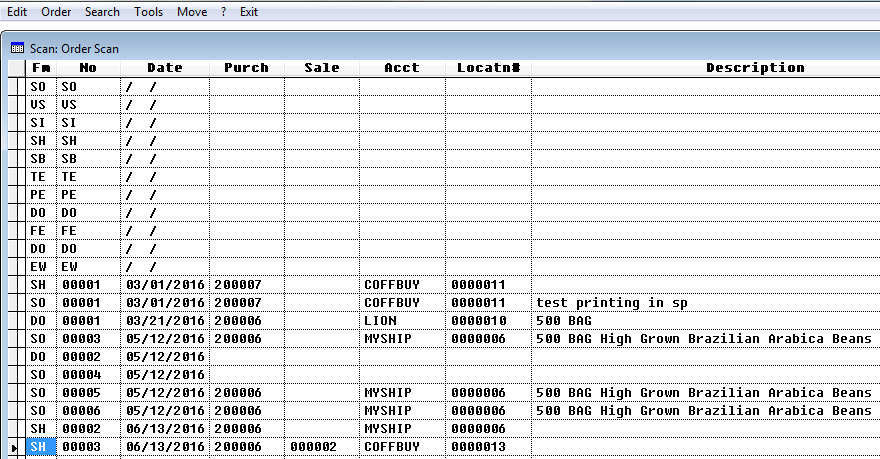

Traffic forms scan main screen

Menu Options

Menu options for traffic form scan are:

• Edit\
• Order\
• Search\
• Tools\

Edit

Choose Edit to go to the traffic form.

Edit from top menu bar

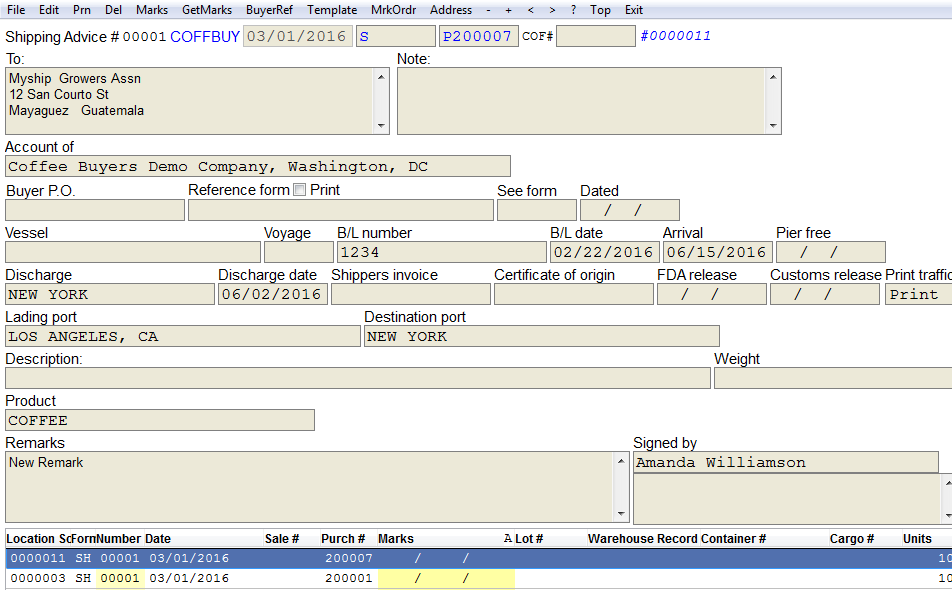

Then choose Edit on the form to modify.

Edit the traffic form scan

Order

Order will change the appearance of the form. You can order list by:
Form/Order Number
Purchase Contract
Sale Contract
As Entered\

Order traffic form scan

Search

Search will take you to a particular order on the scan. You can search list by:
Form/Order Number
Purchase Contract
Sale Contract
Date\

Search traffic form scan

Tools

Choose tools to switch between orders and marks (marks on orders)\

Traffic form scan tools

You can also search and order the marks from this page.

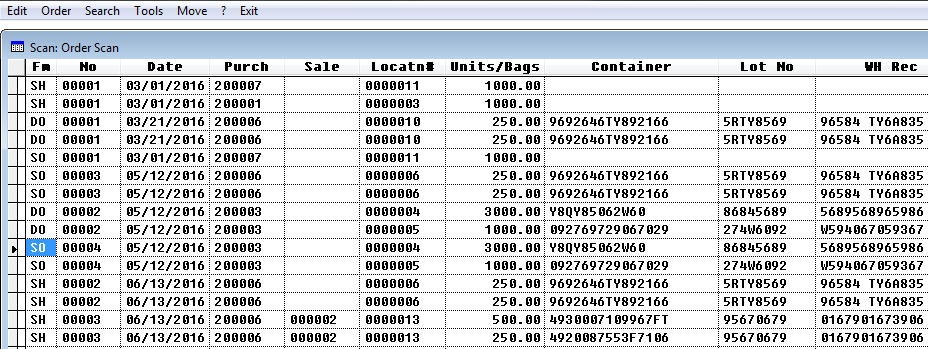

Traffic form scan tools show marks

Press Exit to return to the main menu.
