Creating and Modifying Traffic Documents

Creating and Modifying Traffic Documents​

Traffic documents, also called traffic orders or forms, can be generated by and printed from CATS.

List of Traffic Document Types​

The following is a list of traffic document types, any special information about these types, and their usage in CATS.

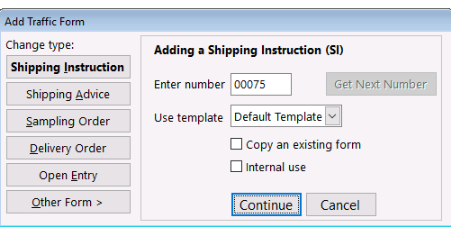

Adding a traffic form
Adding a traffic form
  • DO - Delivery Order - Delivery orders are sent to customers, warehouses, or shipping companies to allow transfer of material.
  • SO - Sampling Order - Sampling orders are used to request samples from sellers on behalf of your company or a customer.
  • SH - Shipping Advice - Shipping Advices allow you to notify a counterparty (usually a warehouse or customer) of an incoming shipment.
  • SI - Shipping Instruction - Shipping Instructions are notes sent to a shipping company on what material is being shipped and any special needs for this shipment.
  • IR - Importer of Record -
  • NN - Non-Negotiable Receipt - A Non-Negotiable Receipt is used to provide proof of ownership of material. A Warehouse Receipt is considered negotiable unless it is marked non-negotiable.
  • PC - Pre-Claim Notification - Notification sent prior to making a claim to insurance for material.
  • SB - Surrender of B/L and Frt - This document is used to request the surrender of bill of lading documents and the freight cargo.
  • BR - Bank Release - Send a Bank Release to show that you (or a counterparty) are allowed to pick up material.
  • VS - Vessel Sheet -
  • PE - Proforma Entry -
  • FE - Final Entry -
  • TE - T&E Transportation & Export - A T&E form is sent to customs to
  • EW - Request for Electronic Whse Receipt -
  • SD - Shipment Declaration -
  • FV - Shipping Advice Feeder Vessel - A Shipping Advice created for the feeder vessel instead of the main vessel.
  • RO - Reconditioning Order -
  • PO - Production Order - A document sent to the production (also called tolling or processing) house to inform them to process specific material.
  • WR - Warehouse Release - Send a Warehouse Release to inform a warehouse that material may be released to X counterparty on Y date.

Once you have created a contract and a location screen, you can create any form at any time. However, you may wish to wait until you have information needed on the form filled in on the location screen.

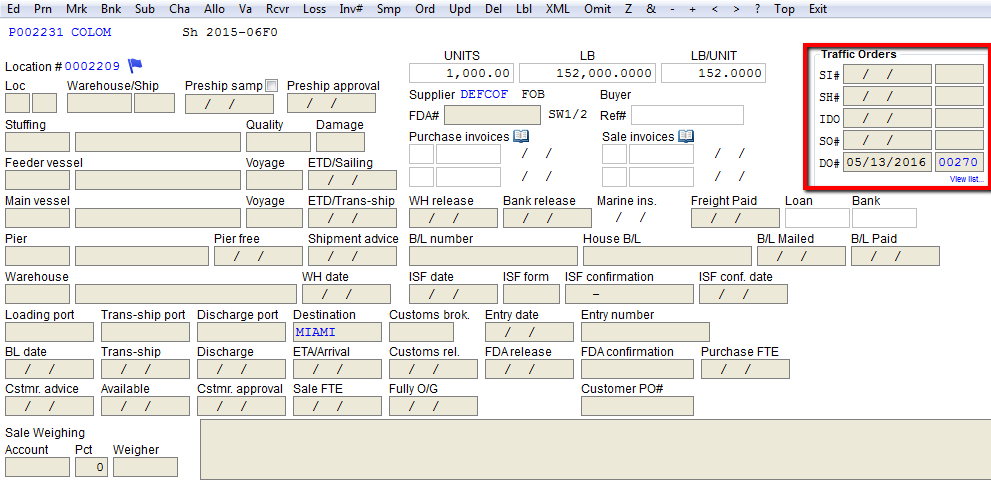

The location screen will show the traffic documents.

Location Screen with Traffic Documents
Location Screen with Traffic Documents

Adding a Form from a Location Screen​

To add a form, first navigate to a location screen using any method. See wiki locscreenoverview for help.\

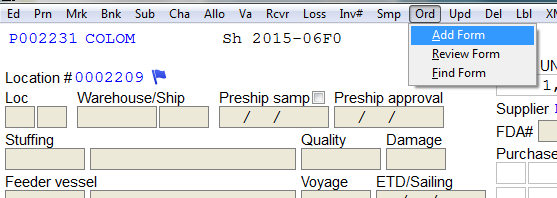

Once location screen is picked, proceed to Ord > Add form from the menu bar.\

Add Traffic Form
Add Traffic Form

Select a type of traffic form.\

Select type of traffic form
Select type of traffic form

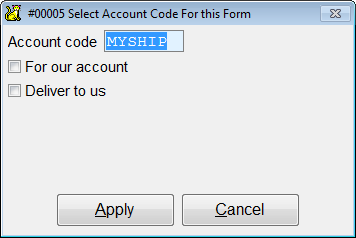

Select account code for this form.\

Select Account Code
Select Account Code

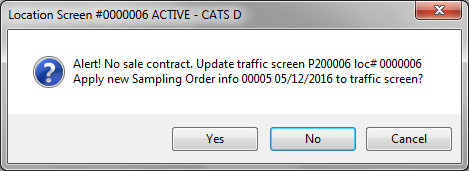

Location screen alert may come up. Say Yes.\

Location Screen No Sale Contract
Location Screen No Sale Contract

Adding a Form from the Main Menu​

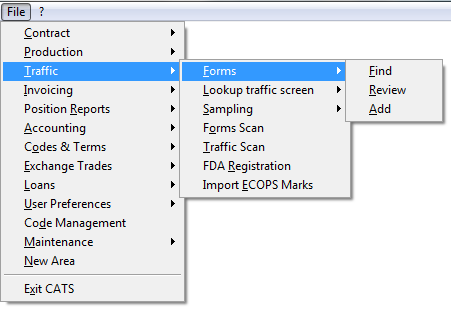

Another way to add a form is from the main menu. Go to Traffic > Forms > Add.\

Add Form from Main Menu
Add Form from Main Menu

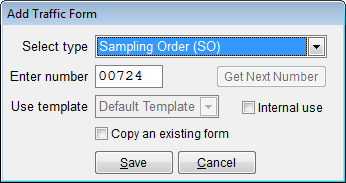

Select a type of traffic form. Press Save.\

Select type of traffic forms
Select type of traffic forms

Select account code for this form. Press Apply to continue.\

Select Account Code
Select Account Code

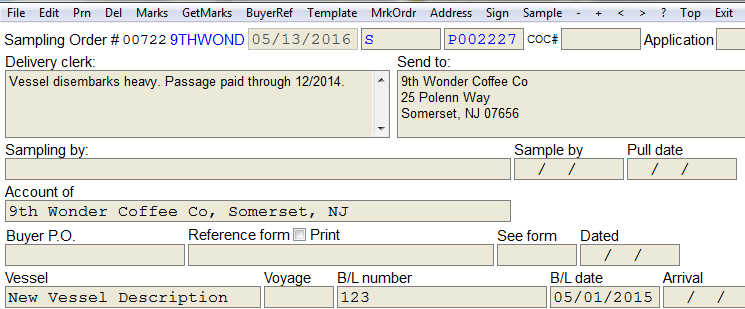

Once the traffic form is created, there are menu options.

Menu options on a sampling order

Edit- Allows user to make changes on the traffic form.
Prn- See below Printing Forms.
Del- Delete exsisting marks.
Mark- See below Adding and Editing Marks.
Get Marks- See below section Get Marks.
BuyerRef-
Template- Create a new template or modify an existing one.
Mrk Order- Order marks by certain criteria.
Address- Allows user to edit delivery clerk, release to, deliver to, account of.
Sign- Attach a digital signature to a document.
Sample- This option is only available on a sampling order. Lets user add sample(s) to the order.\

Editing and Adding Marks​

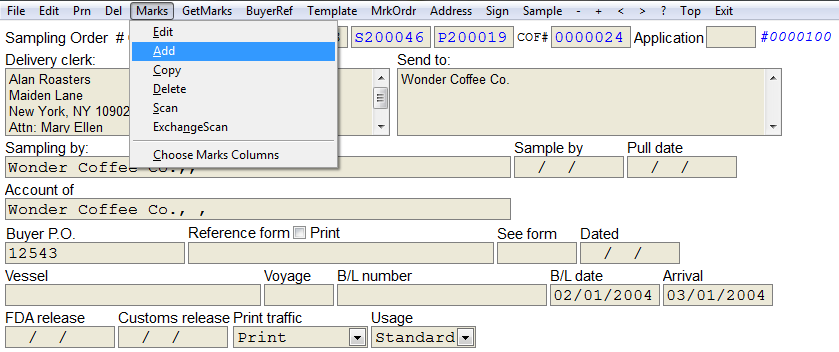

After you create an order form, you can add, edit, copy, delete or scan marks. If you choose Marks > Add from top menu bar, you will manually enter information pertinent to this order.\

Add marks to a sampling order
Add marks to a sampling order

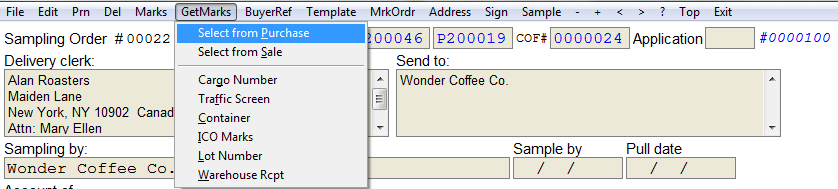

Instead of entering information manual, you can choose to select marks from a purchase order. Go to Get Marks > Select from Purchase.\

Get marks
Get marks

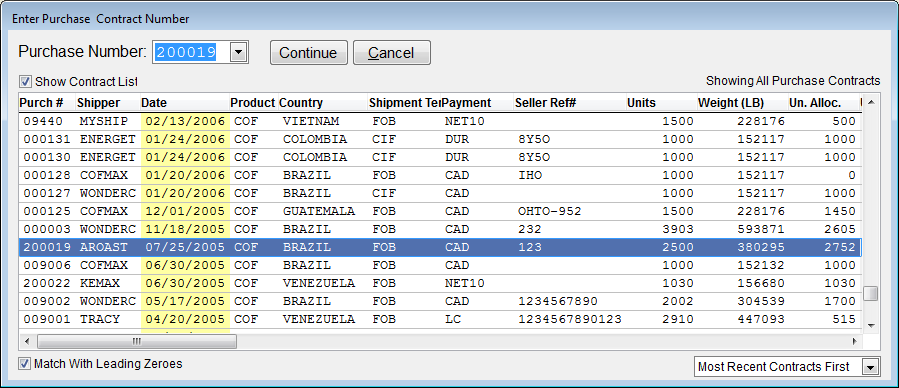

Choose the purchase order. Press Continue.

Choose purchase order
Choose purchase order

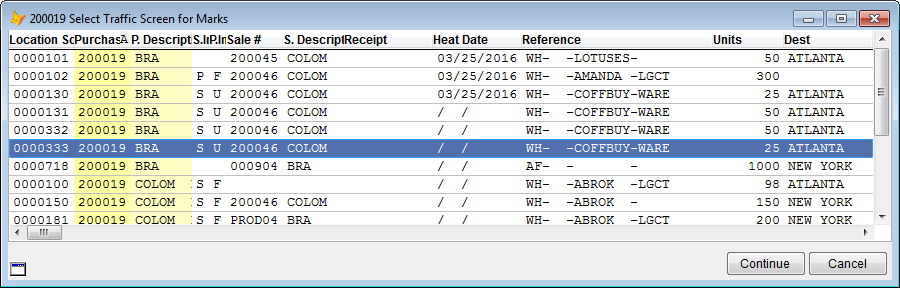

Select the traffic screen for marks. Press Continue.

Select the traffic screen for marks
Select the traffic screen for marks

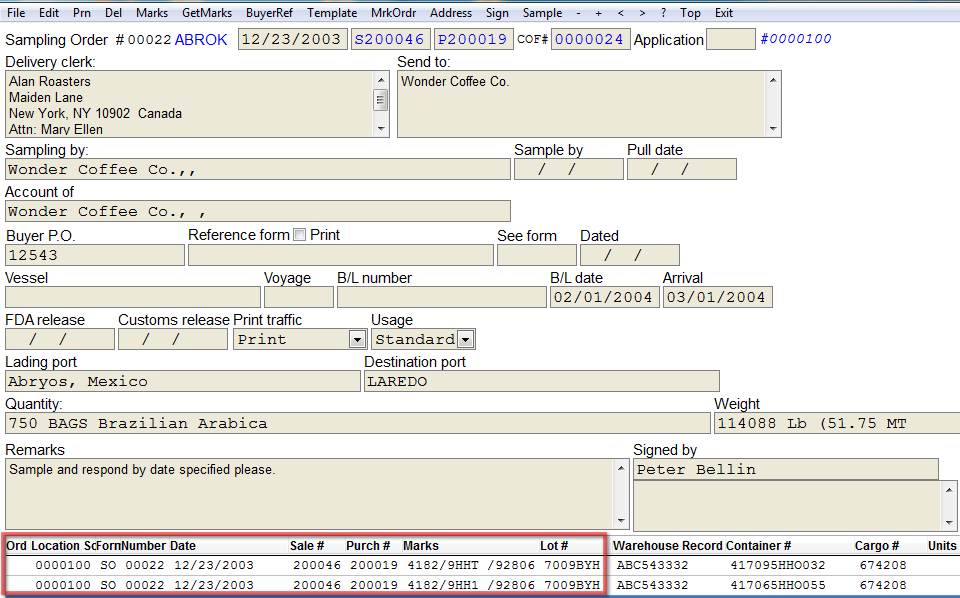

The marks will be on the bottom of the traffic form.\

Sampling order with marks shown on bottom
Sampling order with marks shown on bottom

Printing Forms​

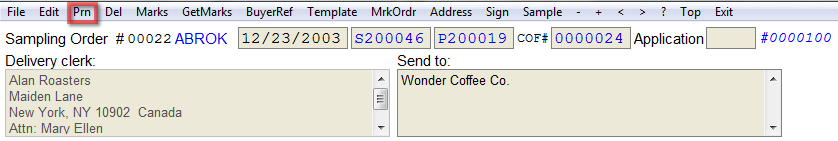

Go to Print.

Print a sampling order
Print a sampling order

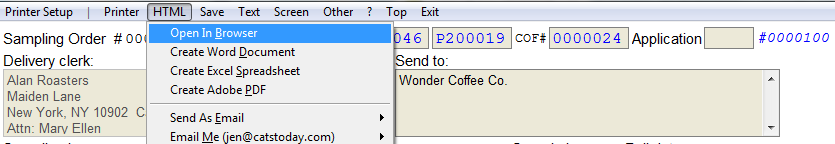

Choose print method you want.

Choose print method
Choose print method

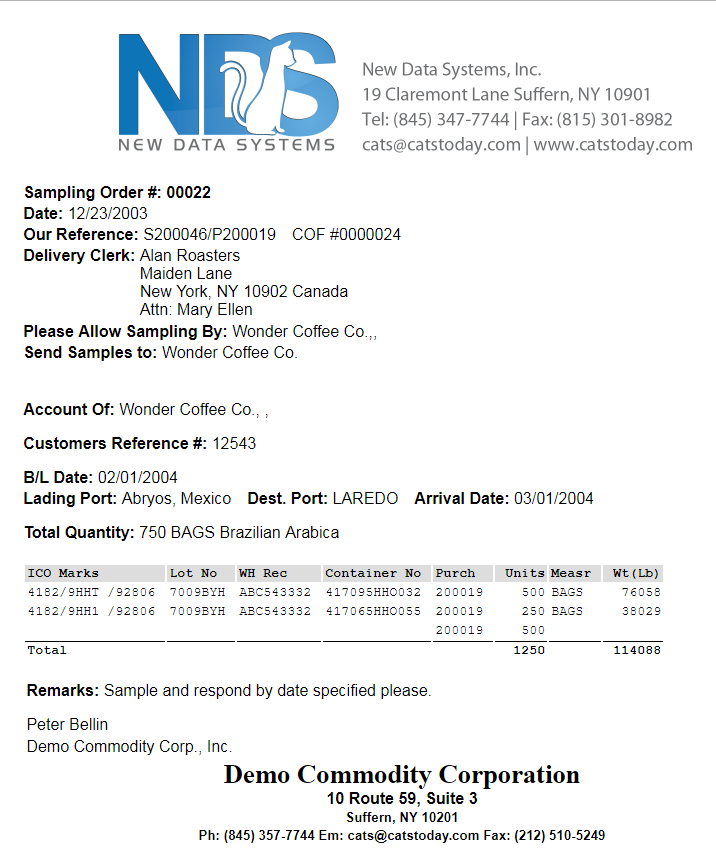

Below is a Sampling Order (SO).\

HTML Sampling Order
HTML Sampling Order

Changing Printed Columns​

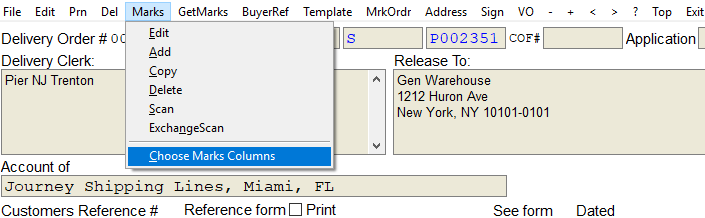

Column settings control which columns appear and in what order, for all scans in CATS. To change default columns that are printed for any type of form, see the wiki on displayed columns. To change the Marks Column Templates on a single traffic form, go to Marks < Choose Marks Column.

Choose marks column
Choose marks column

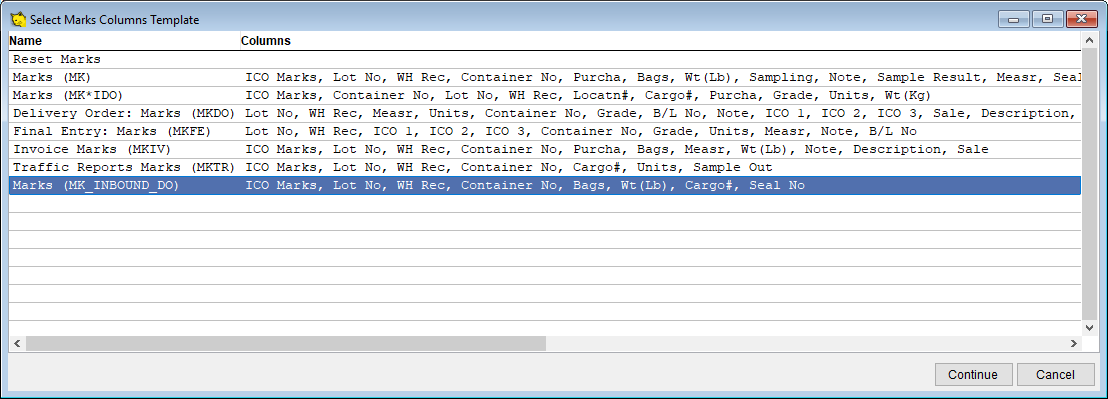

These are templates that exist only on this traffic form. Choose the template and press Continue.

Marks column template
Marks column template

Continue to print as usual.
